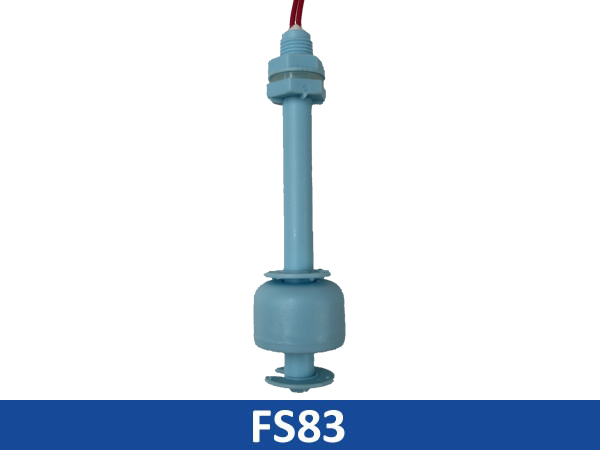

FS83 – Polypropylene Float Switch Bulkhead Mount
Economical, vertical plastic float switch with bulkhead mounting for use with acid solutions, water, and oils.
Product Description
Our FS83 vertical float switches are an economical, versatile choice for use with acid solutions, water, and oils. Made from durable polypropylene, these liquid level sensors are mountable with a simple through-hole or M10 bulkhead brackets and can indicate or control multiple tank levels.
Available in either normally open (NO) or normally closed (NC) configurations, these bulkhead mount float switches feature 63-65 mm switch closure, plastic stem, and M10 nut, 50-watt switch, 200 VDC max voltage, 80°C temperature max, maximum pressure of 25 PSIG.
More About Specialty Vertical Float Switches:
FS83 – Polypropylene Float Switch Bulkhead Mount |
||||||||||
Spec |
Part Number |
Switch Type |
Max Switching Current |
Max Switching Voltage |
Max Temp |
Max Pressure |
Specific Gravity |
Supply Current | Supply Voltage | |
---|---|---|---|---|---|---|---|---|---|---|
![]() ![]() ![]() |
FS83-0011 | 50 W (NO) | 0.7 Amps | 200 VDC | 80°C | 25 PSIG | N/A | N/A | N/A | Quote |
![]() ![]() ![]() |
FS83-0111 | 50 W (NC) | 0.7 Amps | 200 VDC | 80°C | 25 PSIG | N/A | N/A | N/A | Quote |
